OTG UART Terminal-232 1.2

Features OTG UART Terminal-232 1.2

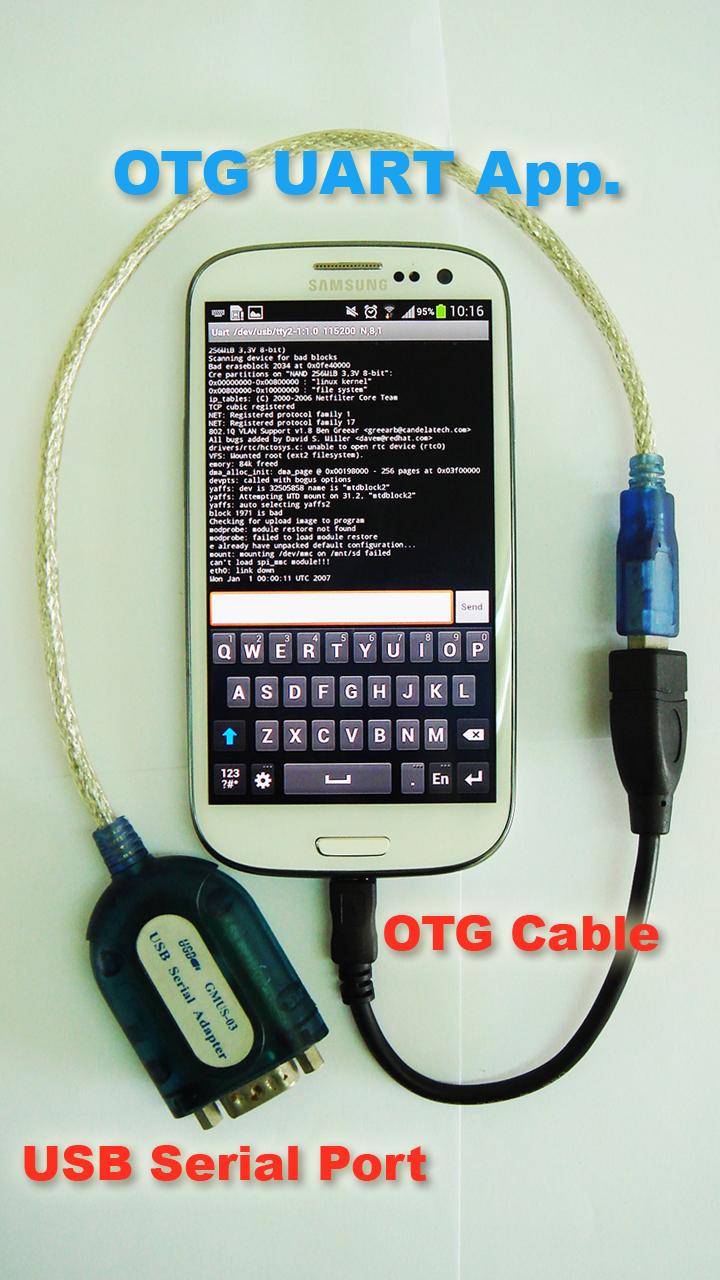

This is a testing tool that makes mobile phone or Tablet a portable UART/RS-232.With it, people don’t carry bulky PC or buy expensive UART testing equipment.If there’s a USB OTG function in your mobile or Tablet, you just need to download the APP, prepare USB OTG Cable and USB Serial Port.
That will make your mobile or Tablet testing tool of UART/RS-232.
**The FDTI Chip doesnt support yet, might be support in the futer.

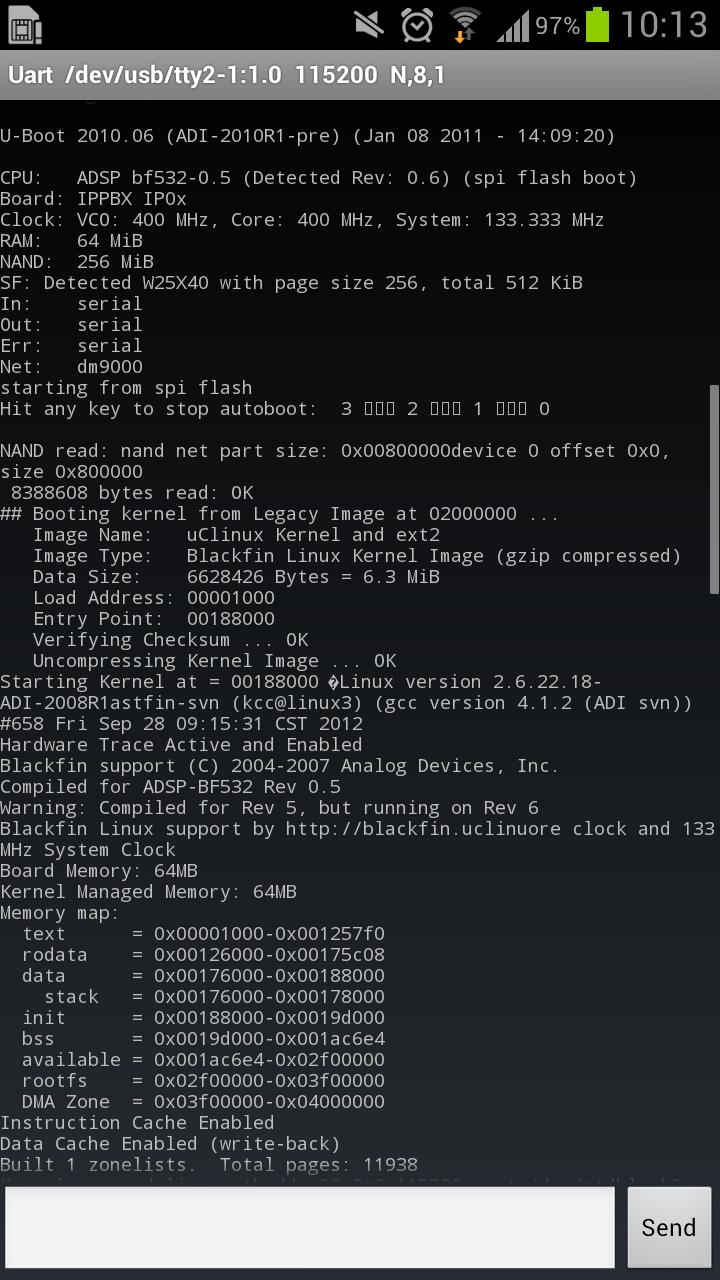

Function:Baud Rate: 1200 ~ 115200Parity Bit: EVEN, ODD, NONEDisplay Mode: HEX or NormalStore Data function.
System Requirements:Over Android 2.3 versionA USB OTG interface in mobile or Tablet .USB OTG Cable.The USB Serial Port Adapter.
For the sake of various standards of Android mobile phone and Tablet, please check your mobile as below to make sure that app can work well:1.
Please check if mobile support the function of USB OTG.2.
Though some mobiles have OTG function, they still need the permission of ROOT while using UART.3.
Though some mobiles have OTG function, they dont supply power in the USB port.
Hence, you must prepare power or USB HUB.4.
The mount point of UART adapter in some mobiles are not absolutely the name of “/dev/usb”, you can use file manager to check the mount point and inform us the name of it also.5.
Anyway, you should see the UART adapter in your mobile device, and it may be in the "/dev/usb" If theres any problem, please feel free to contact us soon.
